Development of lens transmittance improvement for FIR sensor for absolute temperature measurement

Hover over an image to enlarge

[Contact us for a price]
In stock
10 days

Features:

 We have developed a lens transmittance improvement for FIR sensor for absolute temperature measurement, and we introduce successful cases which increased about 10%. FIR (Far InfraRed) sensor is a sensor that detects the temperature by measuring the infrared (IR) emitted from an object and is used in infrared cameras.



 <Lens transmittance improvement for FIR sensor development stage>
(For security reasons, the image above is for reference only.)



<Comparative graph before and after improvement of transmittance>










Hello, I’m DiYPRO

Absolute temperature sensor FIR lens has been developed by L**.

The FIR (Far InfraRed) sensor is a sensor that detects the temperature by measuring the infrared (IR) emitted from the object.

If FIR lens transmittance is good, FIR sensor calibration is easy and accurate detection is possible.

Customers wanted lenses that are heat resistant (thermal durability), opaque and have good transmittance..



<Material improvement>

Generally used materials with good transmittance are not good in heat resistance.

DiYPRO has found new material that is opaque with good heat resistance to meet customer's demand.

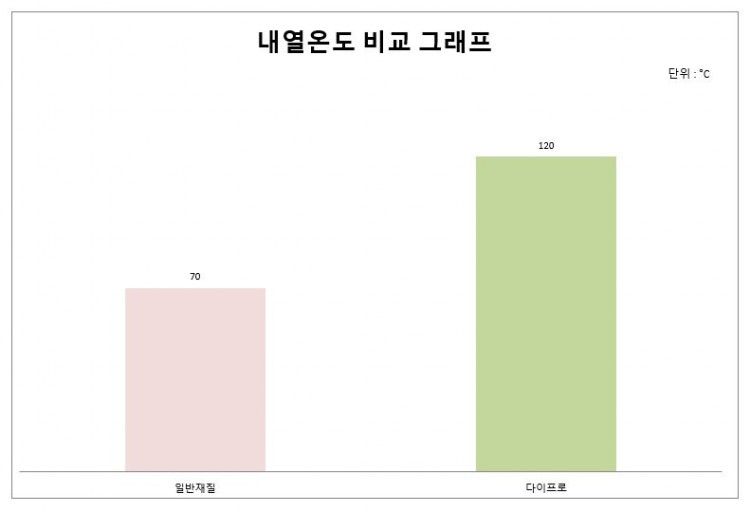

<Heat-resistant temperature comparison graph by material>




We compare the transmittance by selecting materials A and B with good heat resistance.

As shown in the graph below, the transmittance varies greatly depending on the material, so it is important to select the material appropriate for your application.

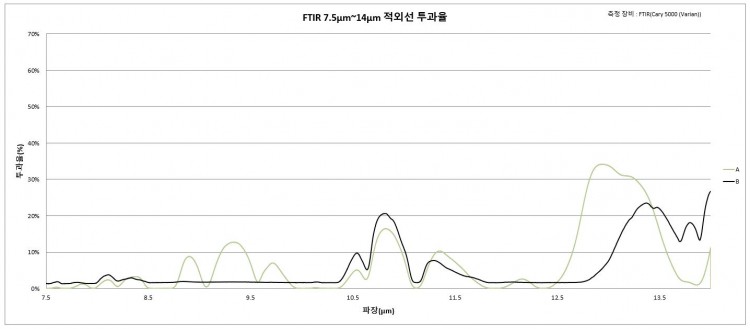

<Comparison graph of transmittance by material>






<Process Improvement>

We selected the A material with high transmittance and improved the transmittance.

We have improved the lens process several times, and have achieved about 10% increase as shown in the graph below.

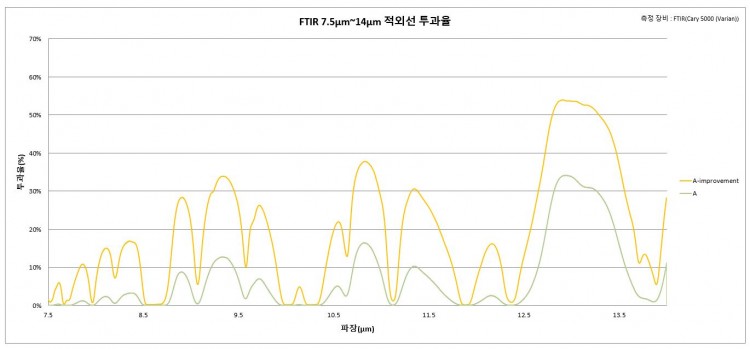

<Comparative graph of transmittance before and after process improvement>









DiYPRO is an optical company that has a process that reflects optical properties, not general injection.

This is evident in lens quality.

Through consulting, DiYPRO offers appropriate solution by selecting lens material, lens shape and lens quality level according to customer's needs.











------------------------------------------------------------------------------------
