TMOS06-12005 for Tmos 221006 EVK
PD06-12005 for TMOS EVK
(Ceiling mounted motion detectors lens)

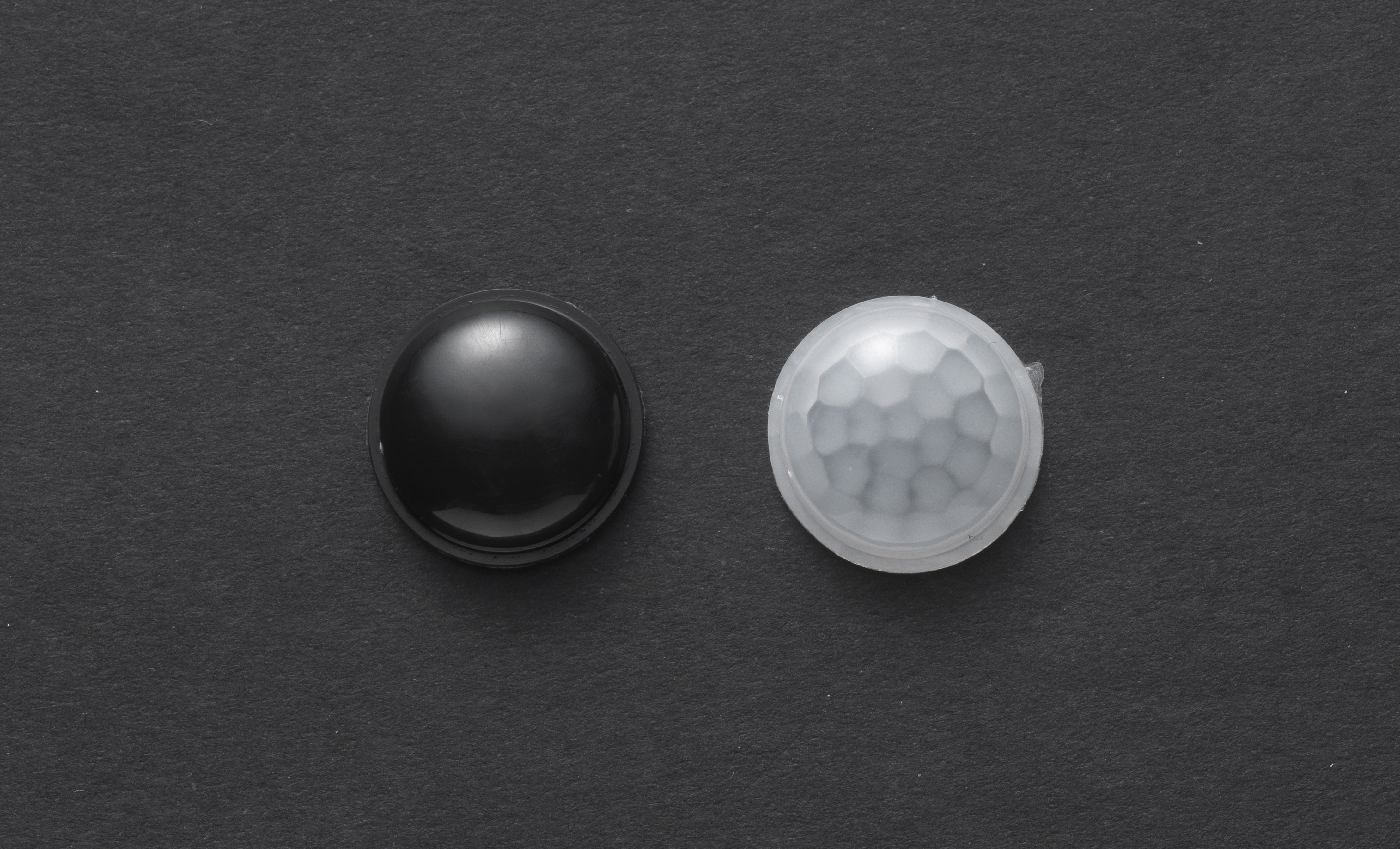

This document specifies TMOS sensor STHS34PF80 from STMicroelectronics and Lens
PD06-12005 from Fresnel Factory Inc.
PD06-12005 is suitable for ceiling mounted motion detectors and presence sensors.
Detection performance can be different according to test setting and room condition. The performance in this document is based on room temperature 25 Celsius,
- Dimension and Detection range of PD06-12005
- Housing for EVK with Back Connector
Please download 3D STP file for 3D printing in link below.
|
Part 1 https://url.kr/6kyvnz |
Part 2 https://url.kr/fq3r9d |
|
|
|
Fastened by 4 Philips self-tapping Screws M2x6
ASSEMBLED HOUSING
