FLIR.Inc Boson320 sensor (with HDPE Lens Module)

$1,505.22
10 days
+


<A $2,100 Flir boson320 thermal sensor can be purchased for approximately $1,500 with a thermal lens module developed by FresnelFactory.>



We sell FLIR.Inc Boson320 sensor with HDPE lens module.

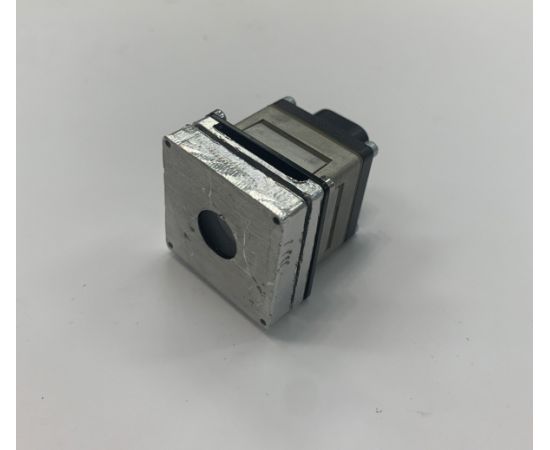

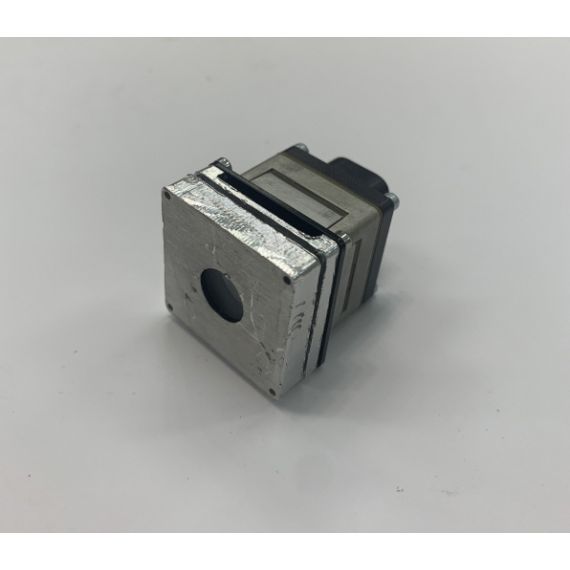

This is a product that removes the lens part of FLIR.Inc Boson320 camera and installs the FresnelFactory.Inc developed HDPE lens module.

This development lens is a prototype and is provided free of charge when purchasing a FLIR.Inc Boson320 sensor.

This product is a thermal imaging camera that can recognize pedestrians in dark environments or in bad weather. it tis suitable for development applications for pedestrian analysis because it is no affected by the environment.

Currently, most thermal imaging cameras use ZnSe lenses. ZnSe material has suitable properties as a thermal imaging camera lens, but it has problems such as high price and bulkiness of the lens composition. Therefore, FresnelFactory is trying to meet the rising demand of the thermal imaging camera market by developing and supplying fresnel lens made of HDPE, which is cheaper, smaller and lighter than ZnSe material.



1. Specification

HDPE Lens module Specification

-

Dimension

Unit

Manufacturer

FresnelFactory.Inc

-

Design wavelength

9~14

um

Material

HDPE

-

Transmittance

45

%

FOV

 20

°

Size

25x25x9

mm

Diameter

5

mm

Focal length

8

mm

Boson320 sensor Specification

-

Dimension

Unit

Manufacturer

FLIR.Inc

-

Model name

BOSON320

-

Size

25x25x13

mm

Sensor pitch

12

um

Sensor pixel

320x256

EA

Active Temperature

-40~80

Weight

7.5

g
























































< This development lens is a prototype. We provide free of when purchasing a FLIR.Inc Boson320 sensor. We will replace it free of charge if an improved lens is being developed for the end of this year.>
