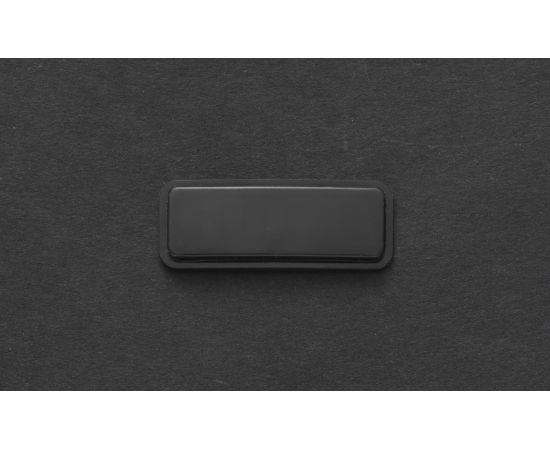

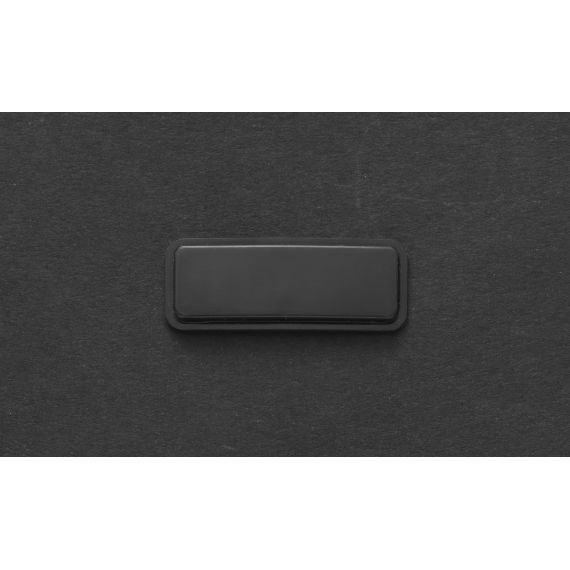

PD08-6003,PIR lens Cover

9
$155
Our quantity discounts:
Quantity
100+
1000+
3000+
Price
$1.00
$0.50
$0.37
10 days
+
Add to wish list
Shipping method
Payment options
Our advantages
  • Best optical performance at IR
  • Qualified with global buyers
  • Handful experience with R&D
ColorBLACK Detectable angle(°)60 Detectable distance(m)3 Installationmoveable MaterialPoly FIR200 Over size(mm)26*10 Sensor to lens(mm)8

The thermopile and passive infrared sensor that are using for motion sensor detects the wavelength of 8~13um.
Without Fresnel lens, the sensor only can detect less than 1m distance and narrower space with lens.
To work with Pyroelectronic detector and thermopile ,Fresnel lens that collects infrared rays as a sensor is required.

Fresnel Factory manufactures Fresnel lenses for passive infrared absolute temperature sensors.
Material is important to have a wide FOV and excellent Far infrared transmittance. Therefore, Fresnel Factory is using Poly FIR200 and Poly FIR25,which have a wide FOV and excel FIR transmittance.







PD05-9005
Overall size: 17mm
Detectable distance:5m
Viewing angle: 90°

PD05-12005
Overall size: 11.8mm
Detectable distance:5m
Viewing angle: 120°

PD06-6005
Overall size: 6mm
Detectable distance:5m
Viewing angle: 60°

PD06-12002B
Overall size: 13.34mm
Detectable distance:5m
Viewing angle: 120°

PD06-12008
Overall size: 14mm
Detectable distance:8m
Viewing angle: 120°

PD09-12008_B&W
Overall size: 17.8mm
Detectable distance:8m
Viewing angle: 120°

PD11-12010
Overall size: 23mm
Detectable distance: 10m
Viewing angle: 120°

PD12-11607
Overall size: 23.9mm
Detectable distance:7m
Viewing angle: 116°

PD12-12010
Overall size: 24x24mm
Detectable distance:5m
Viewing angle: 120°

PD15-12010
Overall size: 35.7mm
Detectable distance:10m
Viewing angle: 120°

PD15-14006
Overall size: 28mm
Detectable distance:6m
Viewing angle: 140°

PD15-36005A
Overall size: 44.5mm
Detectable distance:5m
Viewing angle: 360°

PD15-36007
Overall size: 49mm
Detectable distance:7m
Viewing angle: 360°

PD15-36010
Overall size: 43mm
Detectable distance:10m
Viewing angle: 360°

PD15-36010P
Overall size: 45.7mm
Detectable distance:10m
Viewing angle: 360°

PD23-6020
Overall size: 35x25mm
Detectable distance:20m
Viewing angle: 60°

PD30-0000
Overall size: 64x53.6mm
Detectable distance:m
Viewing angle: °

PD30-36010
Overall size: 76.58mm
Detectable distance:10m
Viewing angle: 360°

PD50-12008
Overall size: 100mm
Detectable distance:8m
Viewing angle: 120°

PD55-14006
Overall size: 13.6mm
Detectable distance:6m
Viewing angle: 140°

PD75-12005A
Overall size: 21.71mm
Detectable distance:5m
Viewing angle: 120°

PD75-12005B
Overall size: 19.77mm
Detectable distance:5m
Viewing angle: 120°

PD75-12005C
Overall size: 19mm
Detectable distance:5m
Viewing angle: 120°

PD076-9005
Overall size: 20.7mm
Detectable distance:5m
Viewing angle: 90°

PD105-10010
Overall size: 23.4mm
Detectable distance:10m
Viewing angle: 360°

PD105-10010F
Overall size: 23.3x23.3mm
Detectable distance:10m
Viewing angle: 100°

PD105-10010S
Overall size: 23.4x23.4mm
Focal length: 10.5mm
Detectable distance:10m
Viewing angle: 100°

PD115-12010
Overall size: 26mm
Detectable distance:10m
Viewing angle: 120°

PD116-12010
Overall size: 23.3mm
Detectable distance:5m
Viewing angle: 120°

PD175-36005
Overall size: 45mm
Detectable distance:5m
Viewing angle: 360°

PF08-10B
Overall size: 12mm
Focal length: 8mm
Detectable distance:10m
Viewing angle: °

PF16-12012
Overall size: 62x25mm
Detectable distance:12m
Viewing angle: 120°

PF20-10B
Overall size: 20mm
Detectable distance:10m
Viewing angle: °

PF20-10W
Overall size: 22.3mm
Detectable distance:10m
Viewing angle: °

PF20-10WS
Overall size: 20mm
Detectable distance:10m
Viewing angle: 120°

PF20-3027
Overall size: *38.1x*32.5mm
Detectable distance:27m
Viewing angle: 30°

PF20-8907
Overall size: 39x25mm
Detectable distance:7m
Viewing angle: 89°

PF21-12015P
Overall size: 78x38mm
Detectable distance:15m
Viewing angle: 120°

PF22-10010
Overall size: 57x36mm
Detectable distance:10m
Viewing angle: 100°

PF23-6020
Overall size: 39x25mm
Detectable distance:20m
Viewing angle: 60°

PF25-9010
Overall size: 53.5x34mm
Detectable distance:10m
Viewing angle: 90°

PF25-12012
Overall size: 92.3x40mm
Detectable distance:12m
Viewing angle: 120°

PF28
Overall size:19mm
Detectable distance:m
Viewing angle: °

PF28-10W
Overall size: 20mm
Detectable distance:10m
Viewing angle: °

PF30-12012C
Overall size: 43.2x19.7mm
Detectable distance:12m
Viewing angle: 120°

PF30-12012P
Overall size: 59.5x39mm
Detectable distance:12m
Viewing angle: 120°

PF30-12012S
Overall size: 46x20mm
Detectable distance:12m
Viewing angle: 120°

PF31-12012
Overall size: 60x52mm
Detectable distance:12m
Viewing angle: 120°

PF297-79810
Overall size: 58x45mm
Detectable distance:10m
Viewing angle: 79.8°

PF297-79810R
Overall size: 56.8x44.6mm
Detectable distance:10m
Viewing angle: 79.8°

PF305-8324
Overall size: 61x42.7mm
Detectable distance:24m
Viewing angle: 83°

PF03-3025
Overall size: 17mm
Detectable distance:25m
Viewing angle: 30°

PD_1
Overall size: 64.8x59.7mm
Detectable distance:m
Viewing angle: °

PD06-12005
Overall size: 16mm
Detectable distance:5m
Viewing angle: 120°

PD12-11612
Overall size: 23.5mm
Detectable distance:12m
Viewing angle: 116°

PD15-36005B
Overall size: 44.5mm
Detectable distance:5m
Viewing angle: 360°

PD30
Overall size: 62.2x52mm
Detectable distance:m
Viewing angle: °

PD60-12008
Overall size: 12.7mm
Detectable distance:8m
Viewing angle: 120°

PD105-10005
Overall size: 22.7mm
Detectable distance:5m
Viewing angle: 100°

PD115-12010_hat
Overall size: 26mm
Detectable distance:10m
Viewing angle: 120°

PF20-10
Overall size: 22mm
Detectable distance:10m
Viewing angle: °

PF20-06015
Overall size: 35mm
Detectable distance:15m
Viewing angle: 60°

PF23-11012
Overall size: 56.7x35.7mm
Detectable distance:12m
Viewing angle: 110°

PF30-12012
Overall size: 59.5x39mm
Detectable distance:12m
Viewing angle: 120°

PF36-10W
Overall size: 20mm
Detectable distance:10m
Viewing angle: °

FD08-10005
Overall size: 23x23mm
Detectable distance:5m
Viewing angle: 100°

PD08-6003
Overall size: 26x10mm
Detectable distance:3m
Viewing angle: 60°

NF26-10
Overall size: Ø10mm
Detectable distance:5m
Viewing angle: 360°

FIR05-01
Overall size: 8.2mm
Detectable distance: &m
Viewing angle: 5°

FIR00-02
Overall size: 10.2mm
Detectable distance: &m
Viewing angle: °

FIR00-03
Overall size: 10.2mm
Detectable distance: &m
Viewing angle: °

FIR05-04
Overall size: 8.2mm
Detectable distance: &m
Viewing angle: 7°

FIR00-95
Overall size: 95*95mm
Detectable distance: &m
Viewing angle: °

NF26-25
Overall size: Ø25mm
Detectable distance: &m
Viewing angle: °
