Making 30 Degree Light Distribution by Applying the Fresnel Lens
06/01/2016

Existing reflector only enables 40° light distribution in the situation given height when we make lighting, so someone asked us to make 30° light distribution within 30mm.

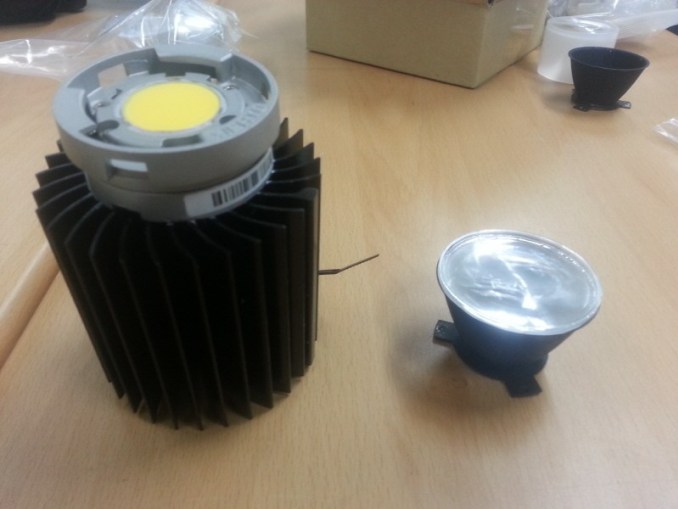

 * Lamp Type: COB  * Beam-angle : 120 Degree ==> less than 30 °  * The distance between the light source and enclosures: less than 30mm

Being pressed time, we produced it using conventional front surface mirorr without making a separate encloruses.

<1m projected photos>

This is the data measured by light distribution manufacturers.

Diypro Co., Ltd is a professional company that specializes in the design and solution providing a variety of optical lenses.

We provide one-stop solution from lens design to production, and import front surface mirror that is distortion-free and 92~98% high reflectivity.
