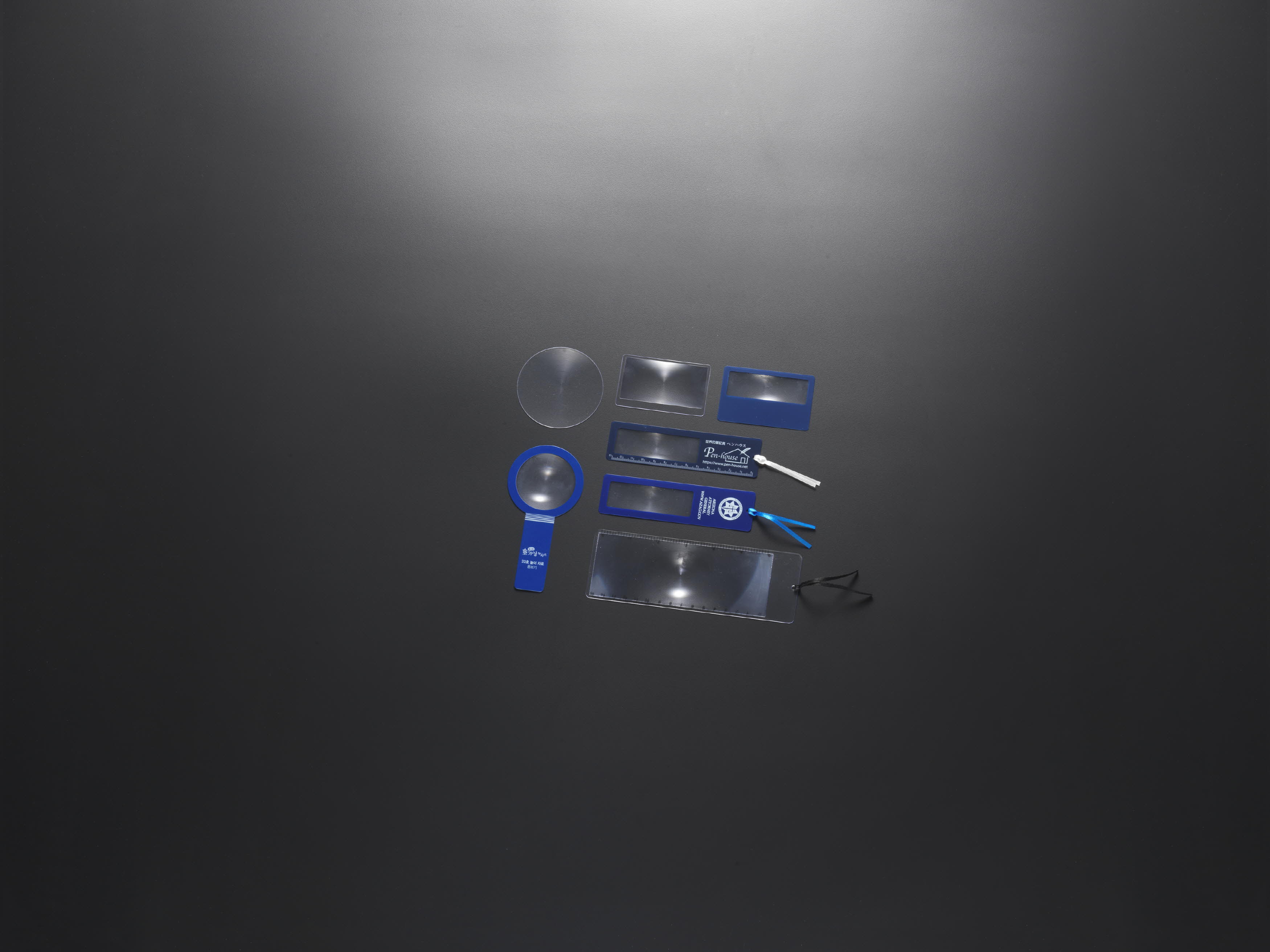

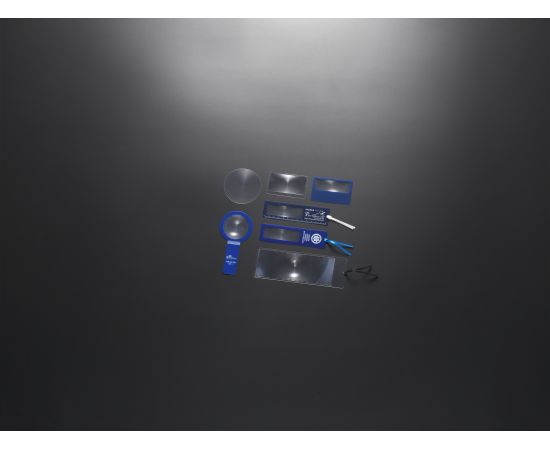

MFL13-95, Card Fresnel lens

$1.00
Our quantity discounts:
Quantity
100+
500+
1000+
Price
$0.60
$0.48
$0.43
In stock
10 days
+
Add to wish list
Shipping method
Payment options
Our advantages
  • Best optical performance at IR
  • Qualified with global buyers
  • Handful experience with R&D
Focal length(mm)13 Groove Pitch(mm)0.4 Length(mm)80 MaterialPoly visiable(UV cut) Thickness(mm)2 Width(mm)51

The Fresnel magnifying glass is an ultra-thin magnifying glass. Fresnel magnifying made of PVC,the minimum thickness can be between 0.45~0.90mm.Unlike ordinary magnifiers,its surface is covered with tiny stripes,and it contains many convex lenes in its spiral stripes.Referring to the ring shape, the light passing through it is curved to produce a diffraction phenomenon,there by forming an enlarged image.
Finel magnifying glass achieves the effect effect that ordinary lenses do not achieve.so it is widely used for reading and reading newspapers for the elderly.

















Technical information


Focal Length (mm) = 13
Width*Length (mm) : 80*51
Groove Pitch (mm) :0.4
Thickness (mm) : 2
Material : PMMA













































Normal type Fresnel lens such as magnifiers, lighting equipment, 3D display is being used in a variety of areas.

Groove(Prism) on the opposite side condensing

(A flat surface condensing)



Also we design to use more 3mm Optical PMMA for loner life time and to have 0.5 ~ 1.0mm groove pitch for higher solar concentration.

(If groove pitch is density, then quality of image that is maginifed is clearer.If groove pitch is width, then efficince of concentration of light is higher.)





◈ Refraction of light with Conve and Concave lens





◈ Cone lux diagram (50, 90, 120˚)

The basic functions of the lens to refract light, can spreading or condensing the light emitted from the light source.

Fresnel lens a lighter and thin than convex(concave) lens.

So, when the Fresnel lens used in lighting equipment to make a lighter, smaller apparatus.









◈ Light distribution changes video





◈ Fresnel lens concentration rate

Concentration rate is ratio between area of solar cell and area of Fresnel lens.

Ex) Fresnel lens size 120*120mm → area of lens is 14400mm2
Solar cell size 5*5mm → area of solar cell is 25mm2
Concentration rate is 14400/25 = 576 times

However because of transmittance rate and other obstructs, multiple 80% is reasonable.
Adjusted concentration rate is (14400*0.8)/25 = 460 times





◈ Using a Fresnel lens solar concentrator





◈ Efficiency and F number

F=focal legnth/Diameter

From F1.2, the efficency is dramatically droped. It shows there is a certain ratio between focal length of fresnel and diameter of lens.

Bigger size Lens is not always the answer.





◈ Comparing transmittance of SOG(Silicone On Glass) and PMMA

Our Optical PMMA has higher transmitive than glass, which is 92~95%, and absorption in visual ray is almost 0%









According to our customer’s needs, we recommend ideal solution from our 106 existing products, which are increasing in diversity.
We are prepared to take from design to prototype to volume production.

Contact us

Email : ashton@fresnelfactory.com
Tel : +82 70-7605-1652 Tel:+1 669 293 4193

Webpage : www.FresnelFatory.com



Please visit our Developed Case List and see our achievements.
http://fresnel.tech/

Focal length(mm):
13
Groove Pitch(mm):
0.4
Length(mm):
80
Material:
  • Poly visiable(UV cut)
Thickness(mm):
2
Width(mm):
51
