TMOS06-12005 for TMOS 221006 EVK

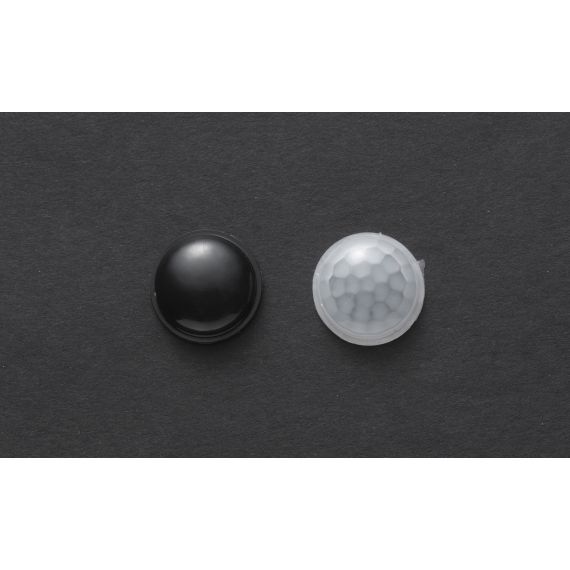

Lens TMOS06-12005 for TMOS EVK
(Ceiling mounted motion detectors lens)
This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS06-12005 from Fresnel Factory Inc.
TMOS06-12005 is suitable for ceiling mounted motion detectors and presence sensors.
Detection performance can be different according to test setting and room condition. The performance in this document is based on room temperature 25 Celsius,
Dimension and Detection range of
TMOS06-12005
TMOS06-12005
Housing for EVK with PCB TMOS_34PF80 Rev2.1_noled_FrontCable.
Please download 3D STP file for 3D printing in link below.
|
https://drive.google.com/file/d/1ZdcRpkJutufgVatGQhTXwaHeWHPsv3HJ/view?usp=drive_link |
https://drive.google.com/file/d/1Q5gBqKS3IjYMkLcVasD-vkzgRXAFTosE/view?usp=drive_link |
|
Housing consists 3 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8.
PCB TMOS_34PF80Rev2.1_noled_FrontCable
|
Lens TMOS06-12005 |
|
Lens TMOS06-12005 |
