TMOS00-04 housing for TMOS sensor STHS34PF80

$600
10 days
+
Add to wish list
Shipping method
Payment options
Our advantages
  • Best optical performance at IR
  • Qualified with global buyers
  • Handful experience with R&D
ColorWarm Grey, Pale blue, Brick Red, WHITE, BLACK MaterialPoly FIR200 SizeØ4
Lens TMOS00-04 for TMOS EVK
(2mm form factor, High transmittance, 6 different colors, Laptop, ceiling, presence detector.

Both motion detection and presence detection are possible.

The perfect solution for California Title24.)


This document specifies TMOS sensor STHS34PF80 from STMicroelectronics,
PCB TMOS_34PF80Rev2.1_noled_FrontCable, and TMOS00-04 from Fresnel Factory Inc.
TMOS00-04 works as a cover to protect the TMOS sensor from dust, water, and human touch. The cover has a tiny form factor,
which is only a diameter 4mm and 0.25mm distance from the sensor.



1. Dimension and orientation of TMOS00-04 lens



Please Note that the Center of the Optical Window of the STHS34PF80 must be aligned with the TMOS 00-04 Center.









   2. Detectable Range and Field of View

TMOS 00-04 changes the Field of View of STHS34PF80 from 80 degree to 50 degree.

This section will be updated.







3. Housing for EVK with PCB TMOS_34PF80

Rev2.1_noled_FrontCable

Please download the 3D STP file for 3D printing using the link below.

Part 1

https://drive.google.com/file/d/10_jsTFP-YGrpvrbpcx-X8NEHvcOBpxMH/view?usp=drive_link

Part 2

https://drive.google.com/file/d/1j4_1n5epcbN00-Nc2zJ-bhg41R9uVOms/view?usp=drive_link

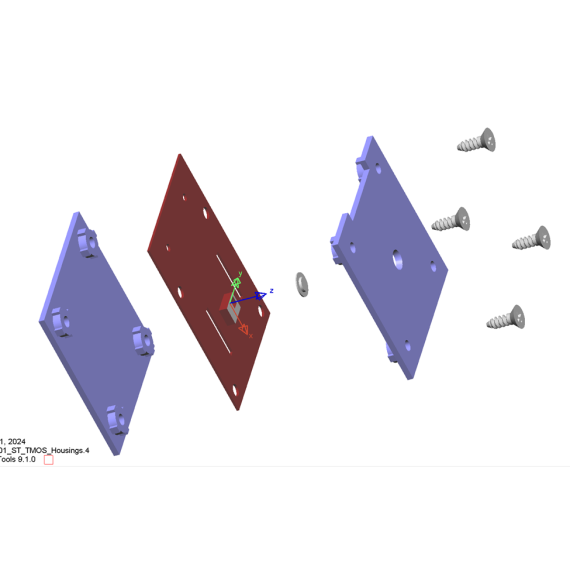

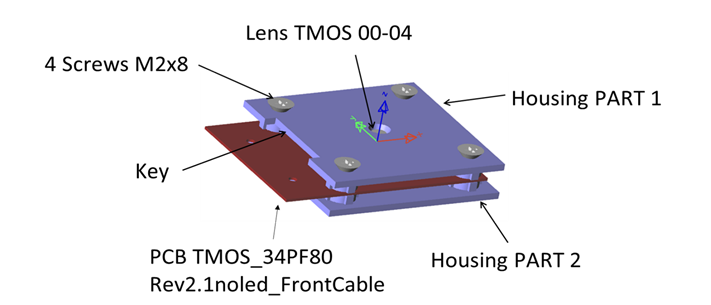

Housing consists 2 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below).

Housing fastened by 4 Philips self-tapping Screws M2x8. (To be updated)

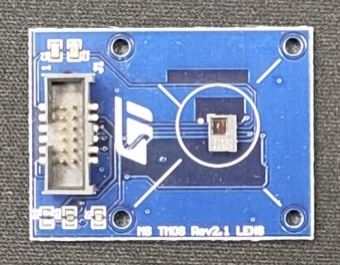

PCB TMOS_34PF80Rev2.1_noled_FrontCable








Assembled Lens TMOS 00-04





                                                                                                                        Contact

Fresnel Factory Inc.

Ashton Myung KIM

ashton@fresnelfactory.com

+82 10-5248-4630

Color
  • Brick Red
  • Pale blue
  • Warm Grey
  • WHITE
  • BLACK
Material
  • Poly FIR200
Size
Ø4
