◈ Production of CPV LENS MOLD CORE

product : CPV Lens Mold Core

usage : condensing solar cell module

Lens size : 120x120mm(4 cavity)

Focal area size : 6x6mm

Light concentration magnifying rate : 400 times

The product now we want to introduce is CPV Lens Mold Core.

As client requested light concentration magnifying rate more than 300 times with PMMA material, we made the product with 400 times in consideration of loss.

(incident surface, exit surface penetration rate  95%, diffraction rate 90%, convergent section 98%,  overall efficiency 80%) ◈ Mold Core(4 cavity)

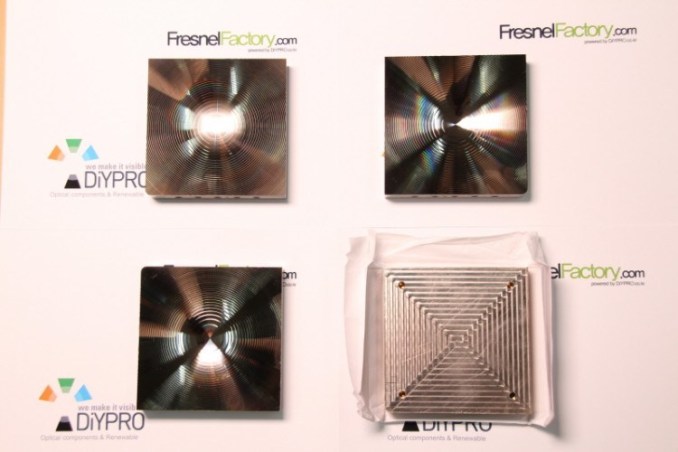

CPV_2.JPG CPV_3.JPG Processing for hole to fix  at Mold Base and side processing for Heating and Cooling are completed.. ◈ side processing


It is mold core mounting area.


DiYPRO provides one-stop solution from Fresnel lens designing  up to mass-production as the manufacturer specialized in the Fresnel lens and front surface mirror, and we are importing and producing various undistorted  92~98% high reflexibility front surface mirror.
