Optical Design of Direct Projection Bicycle Light
09/07/2018
Lighting

Today I introduce a article about designing of bicycle light. The design is followed a guide line of German regulation StVZO.

Authors use inward grooves facing Fresnel lens and reflector.

The link is below.

http://ojs.imeti.org/index.php/PETI/article/download/189/412

<The illustration of Germany StVZO regulations>

Simulation below demonstrates the simulation result of the optimum design. The simulated illuminance distribution is similar as an extended rectangle and in compliance with the requirements of Germany StVZO regulations.

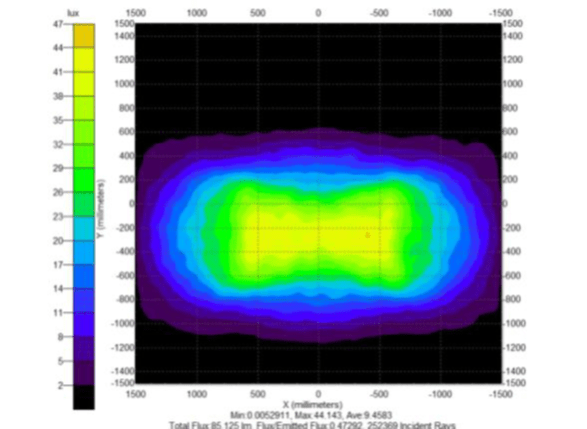

<Simulated illuminance distribution of the proposed direct projection bicycle light – original link>
